Scanfly LITE X

The lightweight and cost-effective Lidar solution for all your survey needs.
Powered by Hesai PandarXT-16

Applanix INS (IMU/GNSS)

Multi-constellation GNSS receiver (GPS/Glonass/Beidou/Galileo/
QZSS/SBAS/L-Band)

Integrated board to control,
acquire and synchronize sensors

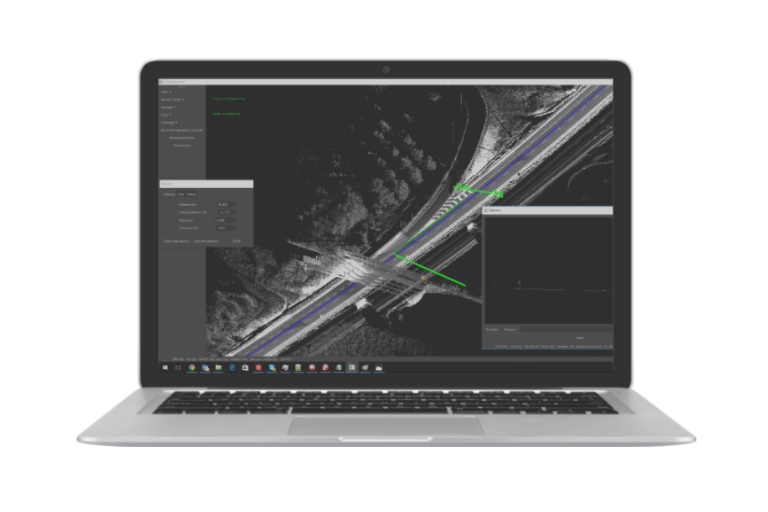

Software: SmartProcessing Lidar for data fusion

Carry case

Customized mounting interface
Easy installation on any vehicle

24-42 MP RGB camera
Multisensor integration interface
60.5 MP panoramic camera

Boresight calibration tool
Ground control points and strip alignment tool

CE Marking
Ingress Protection IP55

Scanfly LITE X

THE 16-CHANNEL LIDAR SOLUTION WITH THE BEST ACCURACY IN THE MARKET

Easy-to-use is the keyword for Scanfly LITE X: easy connection, easy configuration and easy operation. With clear, simple and unique technical specifications, the Scanfly LITE X allows for the installation on land,marine and terrestrial vehicles, making it suitable for any application: from classic topographical to agroforestry survey, not to mention its use for defense, security and monitoring purposes.

Download brochure Compare products View Applications

The payload lidar not only for UAS

Technologies

  • Hesai PandarXT-32 Lidar
  • Applanix APX-15L INS

Lidar integration

  • Multirotor drone
  • Fixed wings drone
  • Backpack mount
  • Car mount

Key features

  • Accurate point cloud
  • Lightweight and compact
  • Calibrated reflecttivity
  • Dual return

Technical details

Code3DT-SF-v2-LITEXa
Lidar HeadHesai PandarXT-16
Weight1.68 kg
Dimensions230 x 131 x 102 mm
Ingress ProtectionIP 55 (CE)
Scan RateUp to 640 000 pts/sec
Rangeup to 130 m
Point Cloud Accuracy5 cm
Precision3 cm
StorageInternal 512 GB, Upgradable to 1 TB
ConnectionEthernet, Wi-Fi
SoftwareScanfly Web App, SmartProcessing Lidar, SmartSurvey Scanfly (optional)

Product dimensions

In the box

Hardware

  • Scanfly XT
  • Multi-pin cable
  • Quick Release Mount
  • Wi-Fi Transceiver
  • Ethernet adapter
  • USB Flash Drive

Accessories

Select lidar mounting system and discover related accessories
